钢构节能建筑工程技术研究中心研发实验楼

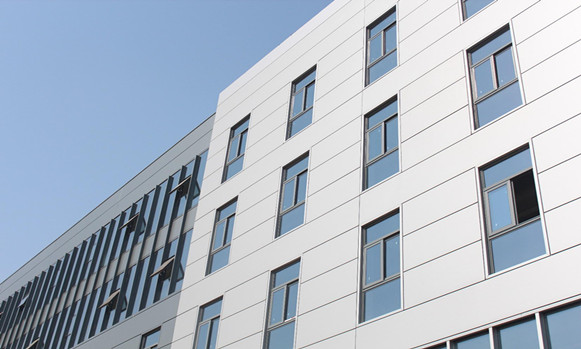

金属复合板采用幕墙结构形式

金属复合板为横向铺设，板材上下插入式连接，纵向通过工厂折边，板端离缝，采用高耐侯EPDM镶嵌，形成横竖缝相似。板材表面平整度高，自重轻，防火性能好，安装方便，节点收边处理简洁，无明钉，构造防水效果好，无冷桥。立面达到金属幕墙效果，与玻璃幕结合提升工业建筑立面档次。

Metal wall panels connected by upper and down plug-ins in horizontal installation, vertical gap is filled with EPDM, formed in horizontal gap appearance.This panel features high flatness, light weight,fire-proofing,easy installation,clean joint trim treatment, water-proofing and minimizes exposed nails and thermal bridges. making exterior a sense of metal wall.It can be integrated with glass wall to upgrade industrial building elevation.

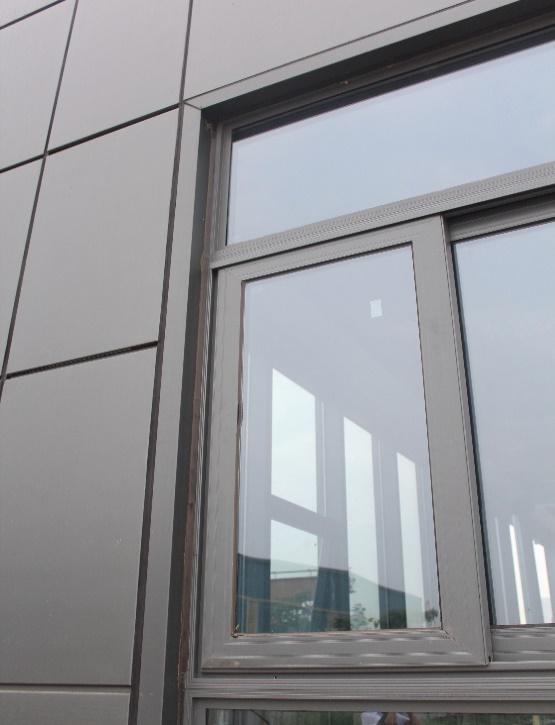

门窗收边

门窗周边收边同外墙板平，保证防水的同时，突出横竖缝线条的清晰。

Window edge is intergreted perfectly with exterior wall panel, which highlights the clear lines of horizontal  and vertical reveals while capable of water-proofing.

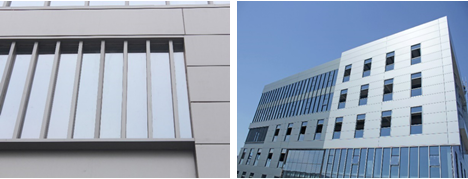

U型转角板

U型转角板，即是墙面的立体转角处理,运用U型转角板不但可以很好地突出墙面转角的整体性而且能够增强建筑物立面效果。对于加工的精度以及安装水平的完美体现。

U profile panel is the three-dimensional corner treatment for wall panel. U profile panels not only give prominence to  the integrality of wall corner but also hightlight building elevation aesthetic, which is the perfect expression of procesing accuracy and installation level.
